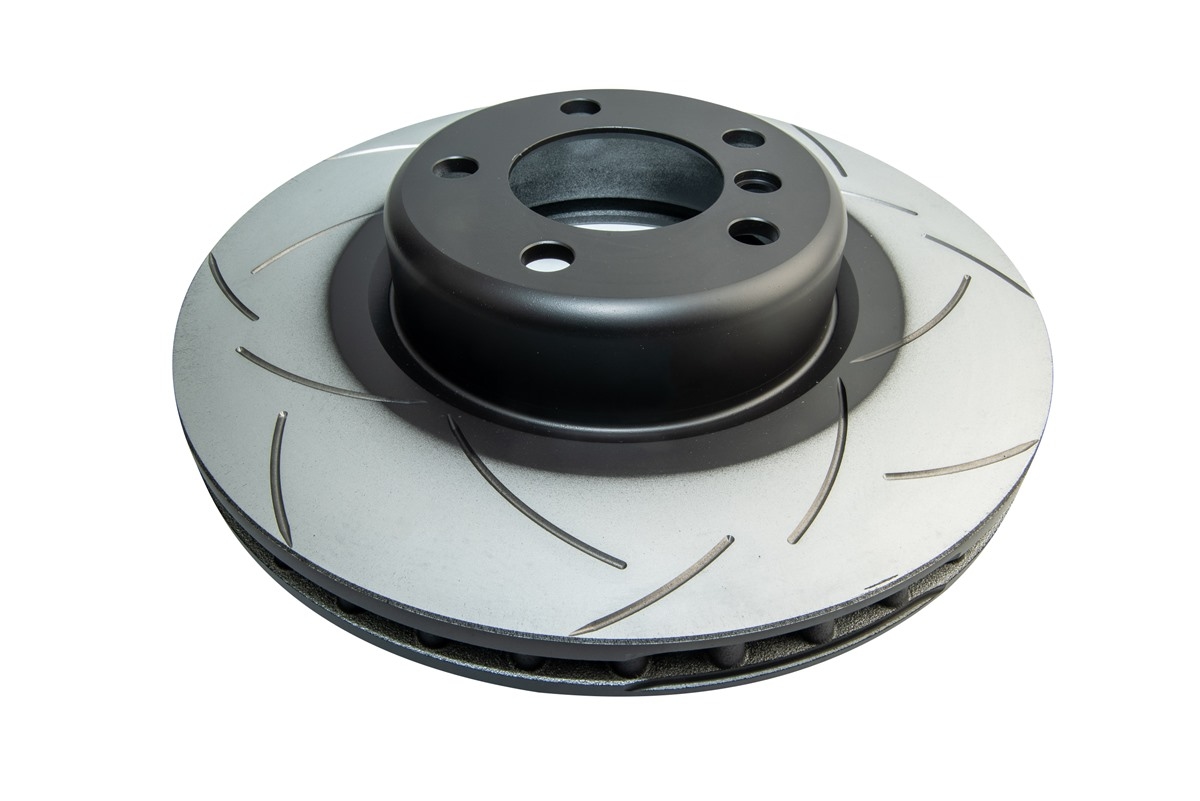

Street Series - T2 | AutoKultas

Product_Overview

DESCRIPTION

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
Thermographic Temperature Monitoring	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
Paint protection on non-friction areas	Enhances appearance	Adds value to the product

Product_Specifications

TECHNICAL_SPECIFICATIONS

SKUDBA2676S

DIAMETER_MM340

INNER_DIAMETER_MM79.00

THICKNESS_MM30

MIN_THICKNESS_MM28,4

HEIGHT_MM73.20

HOLES5

DISC_VENTKangaroo Paw

STAGEStage 2

BARCODE9316391426710

Fitment_Data

VEHICLE COMPATIBILITY

BMW

1 Series (F20) M135 (3.0 Turbo 320BHP (2012-2017) 2012-2017)1 Series (F20) M140 (3.0 Turbo 340BHP (2016-2019) 2016-2019)1 Series (F21) M135 (3.0 Turbo 320BHP (2012-2017) 2012-2017)1 Series (F21) M140 (3.0 Turbo 340BHP (2016-2019) 2016-2019)1 Series (xDrive F20) M135 (3.0 Turbo 320BHP (2012-2017) 2012-2017)1 Series (xDrive F20) M140 (3.0 Turbo 340BHP (2016-2019) 2016-2019)1 Series (xDrive F21) M135 (3.0 Turbo 320BHP (2012-2017) 2012-2017)1 Series (xDrive F21) M140 (3.0 Turbo 340BHP (2016-2019) 2016-2019)2 Series (F22 Coupe) 228 (2.0 Turbo 240BHP (2014-2016) 2014-2016)2 Series (F22 Coupe) 230 (2.0 Turbo 252BHP (2016-) 2016-)2 Series (F22 Coupe) M235 (3.0 Turbo 326BHP (2013-2016) 2013-2016)2 Series (F22 Coupe) M240 (3.0 Turbo 340BHP (2016-) 2016-)2 Series (F23 Convertible) 230 (2.0 Turbo 252BHP (2016-) 2016-)2 Series (F23 Convertible) M235 (3.0 Turbo 326BHP (2014-2016) 2014-2016)
