CATEGORY // STREET

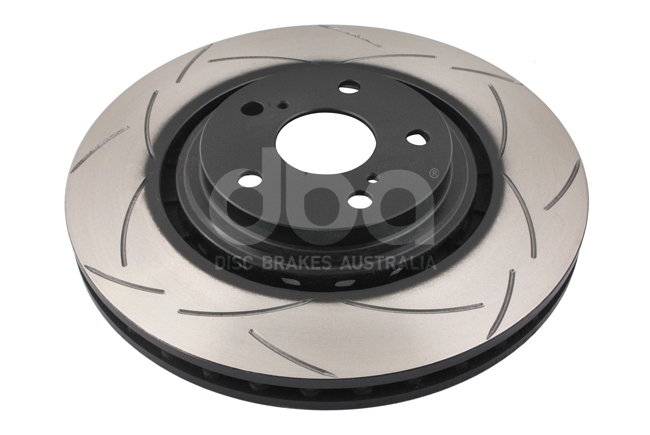

Street Series - T2 (Superseded by DBA 2748S)
€130.18
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
) Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA2734S
DIAMETER_MM328
INNER_DIAMETER_MM62
THICKNESS_MM28
MIN_THICKNESS_MM25
HEIGHT_MM49.5
HOLES5
PITCH_CIRCLE_MM114.3
DISC_VENTKangaroo Paw
STAGEStage 2
Fitment_Data
VEHICLE COMPATIBILITY
LEXUS
NX200 (2.0 150BHP (2014-) 2014-)NX200t (2.0 Turbo 235BHP (2014-) 2014-)NX300h (2.5 Hybrid 194BHP (2014-) 2014-)RX450h (3.5 Hybrid (2009-2016) 2009-2016)
TOYOTA
Highlander (3.3 2WD (2008-2010) 2008-2010)Highlander (3.3 4WD (2008-2010) 2008-2010)Highlander (3.5 2WD (2008-2013) 2008-2013)Highlander (3.5 2WD (2014-2019) 2014-2019)Highlander (3.5 4WD (2008-2013) 2008-2013)Highlander (3.5 4WD (2014-2019) 2014-2019)Rav 4 (2.0 (2013-2018) 2013-2018)Rav 4 (2.0 TD (2013-2018) 2013-2018)Rav 4 (2.2 TD (2013-2018) 2013-2018)Rav 4 (2.5 Hybrid (2016-2018) 2016-2018)Sienna (3.5 (2011-) 2011-)
