CATEGORY // STREET

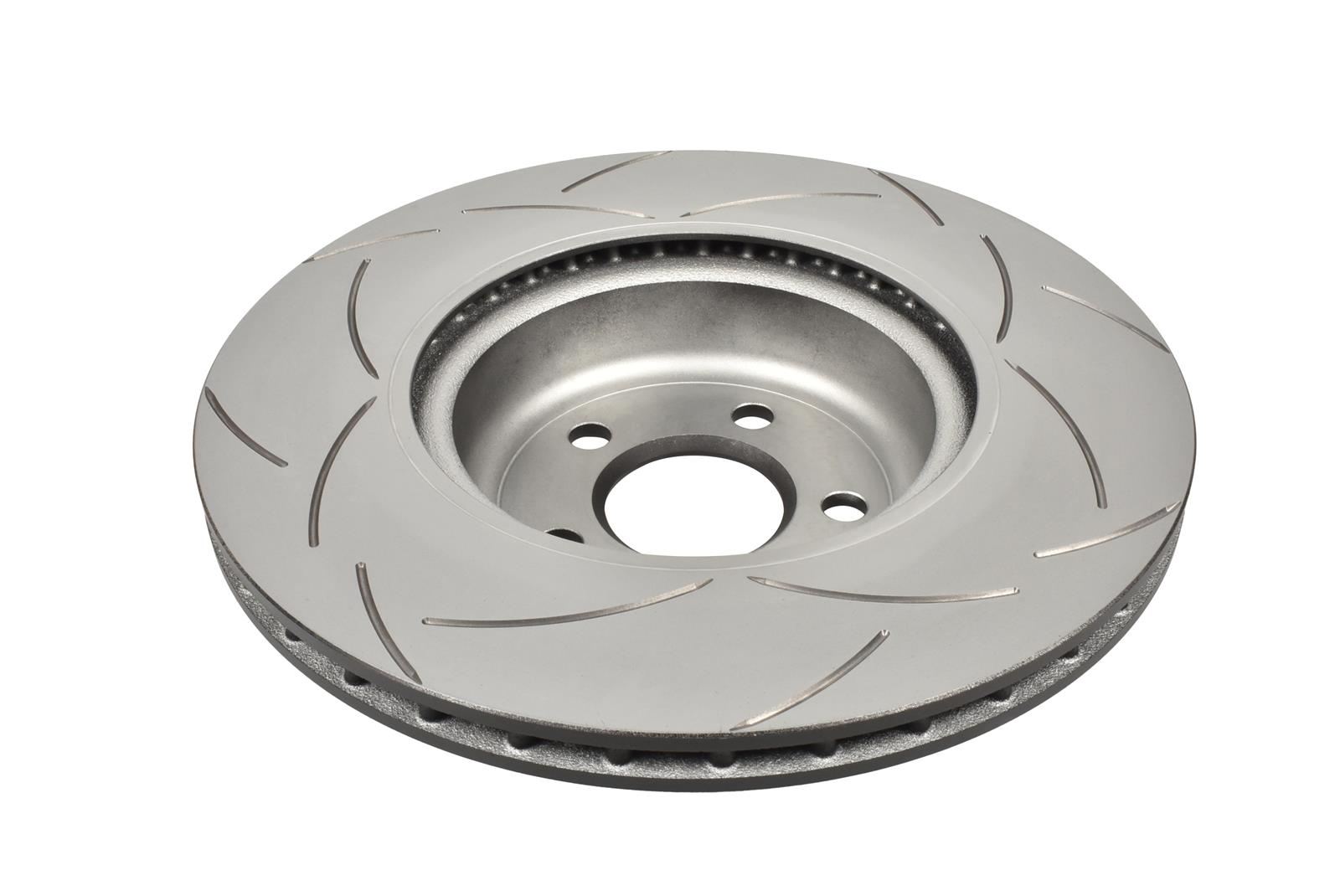

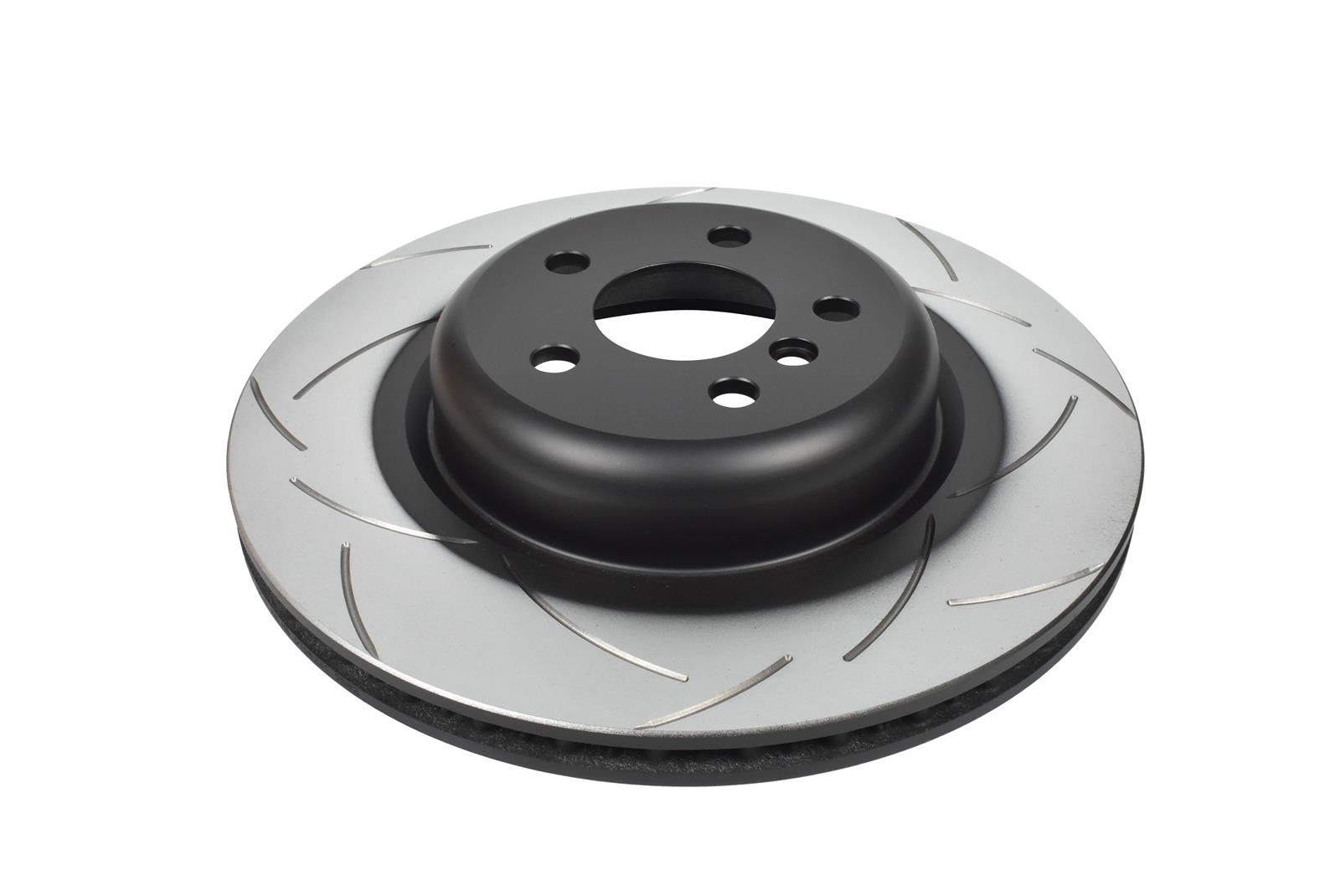

Street Series - T2
€171.39
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
) Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA3419S
DIAMETER_MM345
INNER_DIAMETER_MM67
THICKNESS_MM24
MIN_THICKNESS_MM22.4
HEIGHT_MM64.2
HOLES5
Fitment_Data
VEHICLE COMPATIBILITY
BMW
3 Series (G20) 318 (2.0 TD 148BHP (2019-2020) 2019-2020)3 Series (G20) 318 (2.0 TD and Electric 148BHP (2020-) 2020-)3 Series (G20) 318 (2.0 Turbo 156BHP (2020-) 2020-)3 Series (G20) 320 (1.6 Turbo 170BHP (2019-) 2019-)3 Series (G20) 320 (2.0 TD 188BHP (2019-2020) 2019-2020)3 Series (G20) 320 (2.0 Turbo 181BHP (2019-) 2019-)3 Series (G20) 330 (2.0 Turbo 255BHP (2019-) 2019-)3 Series (G20) 330 (3.0 TD 261BHP (2019-) 2019-)3 Series (G20) 330e (2.0 Turbo and Electric 292BHP (2019-) 2019-)3 Series (G20) M340 (3.0 TD and Electric 340BHP (2020-) 2020-)3 Series (G20) M340 (3.0 Turbo 374BHP (2019-) 2019-)3 Series (G21) 318 (2.0 Turbo 156BHP (2020-) 2020-)3 Series (G21) 320 (2.0 TD 188BHP (2019-) 2019-)3 Series (G21) 320 (2.0 Turbo 181BHP (2019-) 2019-)3 Series (G21) 330 (2.0 Turbo 255BHP (2019-) 2019-)
