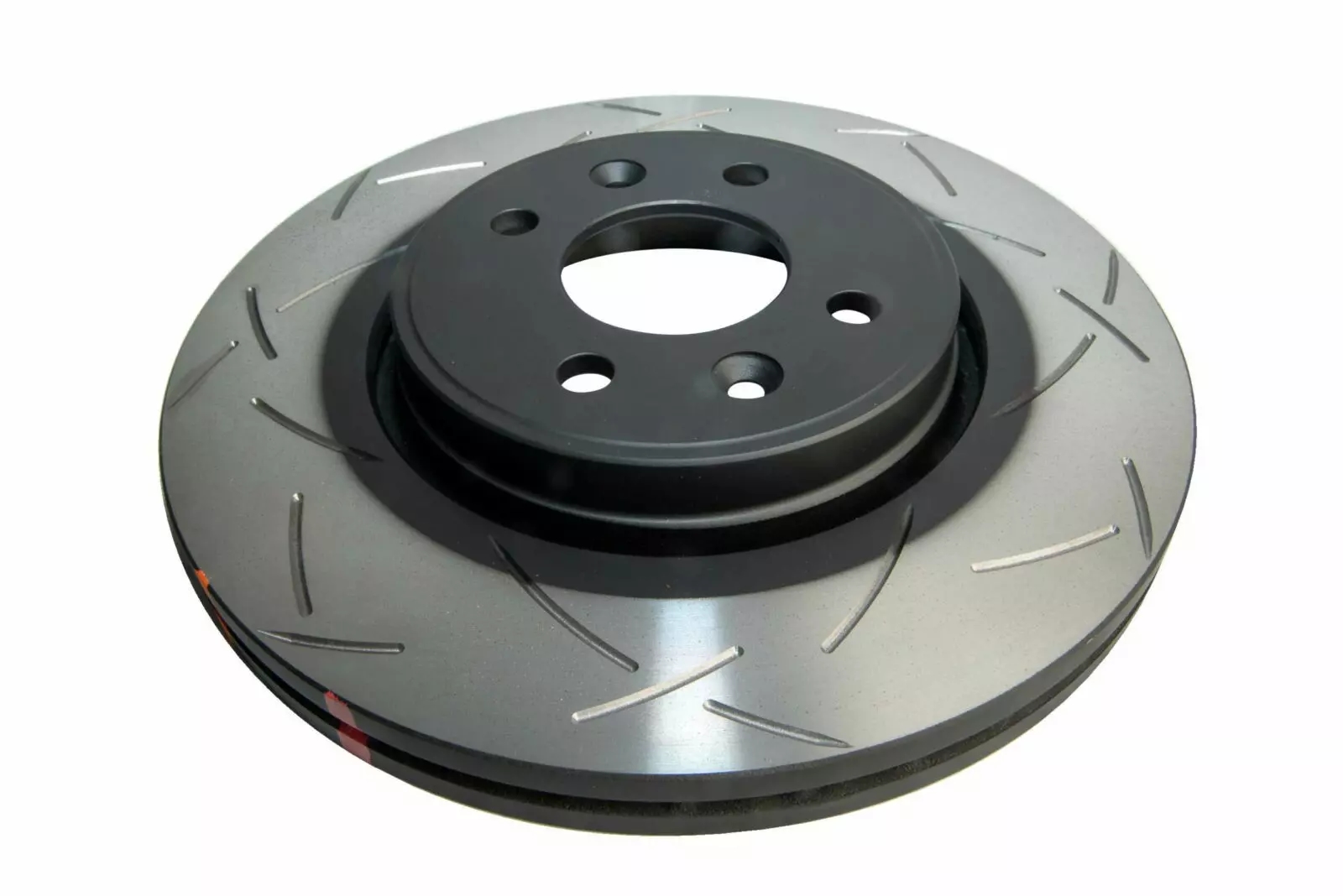

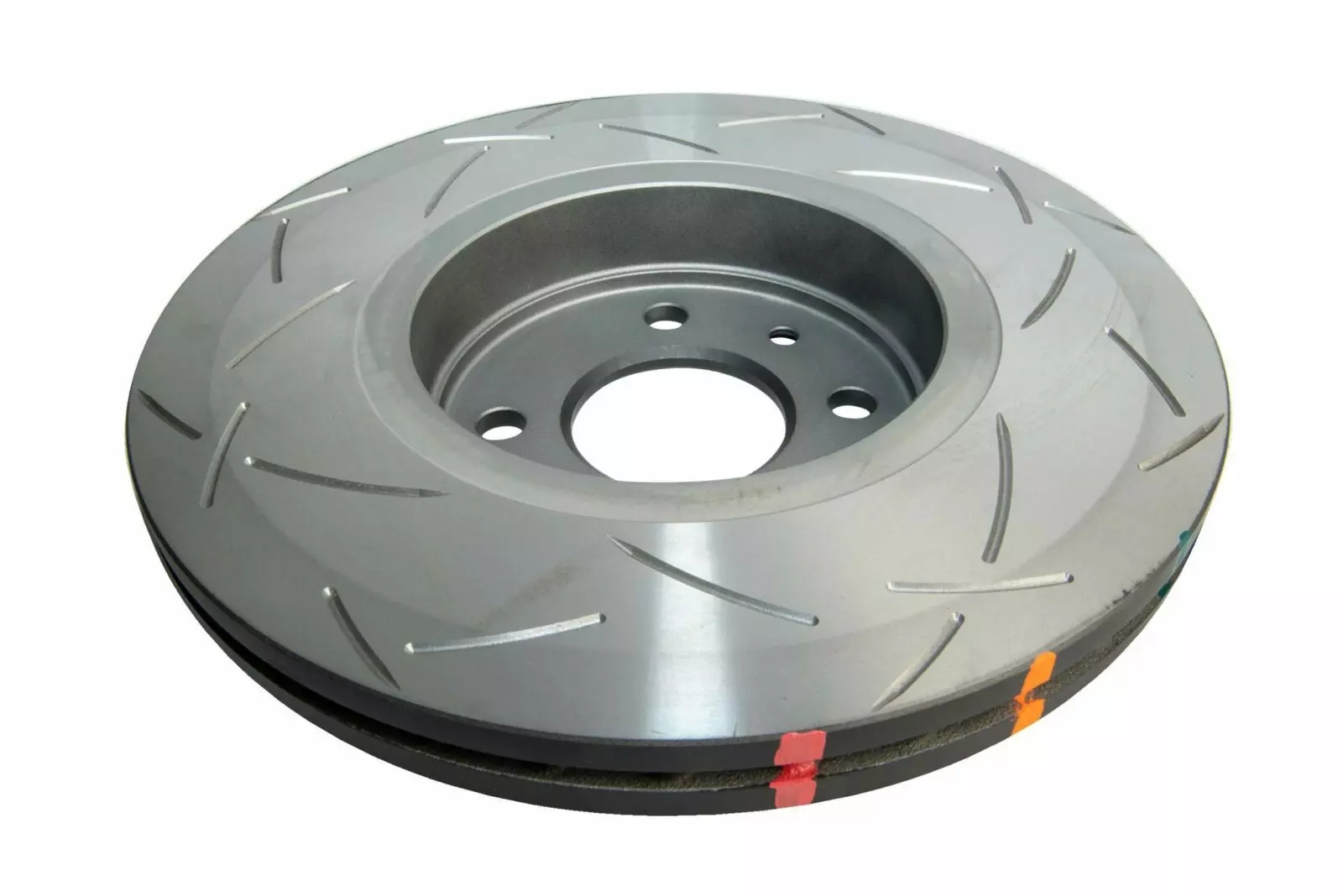

4000 series - T3
€175.47
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
) Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA42353S
DIAMETER_MM280
INNER_DIAMETER_MM100.00
THICKNESS_MM24
MIN_THICKNESS_MM21,8
HEIGHT_MM44
HOLES4
PITCH_CIRCLE_MM61
STAGEStage 4
Fitment_Data
VEHICLE COMPATIBILITY
DACIA
Dokker (1.2 Turbo (2012-) 2012-)Dokker (1.5 TD (2012-) 2012-)Dokker (1.6 (2012-) 2012-)Dokker Van (1.2 Turbo (2013-) 2013-)Dokker Van (1.5 TD (2013-) 2013-)Dokker Van (1.6 (2013-) 2013-)Lodgy (1.2 Turbo (2012-) 2012-)Lodgy (1.5 TD (2012-) 2012-)Lodgy (1.6 (2012-) 2012-)
RENAULT
Captur (1st Gen) (1.2 Turbo (2013-2019) 2013-2019)Captur (1st Gen) (1.3 Turbo 130BHP (2018-2019) 2018-2019)Captur (1st Gen) (1.3 Turbo 150BHP (2018-2019) 2018-2019)Captur (1st Gen) (1.5 TD (2013-2019) 2013-2019)Clio (Mk2) (2.0 RS 172BHP (2000-2005) 2000-2005)Clio (Mk2) (2.0 RS 182BHP (2004-2006) 2004-2006)
