CATEGORY // 4000

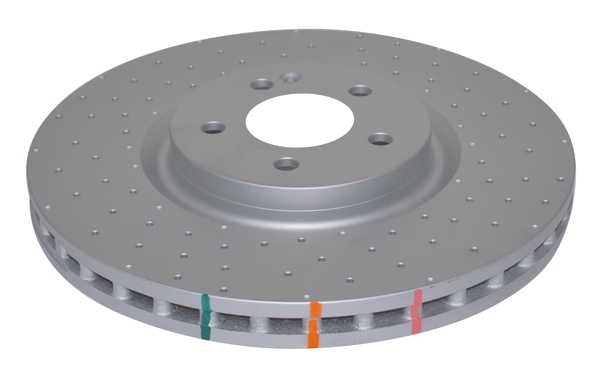

4000 series - XD
Fits MERCEDES-BENZ A-Class (W176) A45 AMG / CLA Shooting Brake (X117) CLA45 AMG / CLA-Class (C117) CLA45 AMG / GLA-Class (X156) GLA45 AMG / SLC (R173) SLC43 AMG + 1 more
€253.94incl. VAT
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA42699XD
DIAMETER_MM330
INNER_DIAMETER_MM67
THICKNESS_MM22
MIN_THICKNESS_MM20
HEIGHT_MM41.5
HOLES5
PITCH_CIRCLE_MM112
DISC_VENTKangaroo Paw
STAGEStage 3
BARCODE9316391426093
Fitment_Data
VEHICLE COMPATIBILITY
MERCEDES-BENZ
A-Class (W176) A45 AMG (2.0 Twin Turbo 360BHP (2013-2018) 2013-2018)A-Class (W176) A45 AMG (2.0 Twin Turbo 381BHP (2015-2018) 2015-2018)CLA Shooting Brake (X117) CLA45 AMG (2.0 Twin Turbo 360BHP (2013-2015) 2013-2015)CLA Shooting Brake (X117) CLA45 AMG (2.0 Twin Turbo 381BHP (2015-2019) 2015-2019)CLA-Class (C117) CLA45 AMG (2.0 Twin Turbo 360BHP (2013-2015) 2013-2015)CLA-Class (C117) CLA45 AMG (2.0 Twin Turbo 381BHP (2015-2019) 2015-2019)GLA-Class (X156) GLA45 AMG (2.0 Twin Turbo 355BHP (2014-2016) 2014-2016)GLA-Class (X156) GLA45 AMG (2.0 Twin Turbo 381BHP (2015-2020) 2015-2020)SLC (R173) SLC43 AMG (3.0 Twin Turbo 367BHP (2016-2018) 2016-2018)SLC (R173) SLC43 AMG (3.0 Twin Turbo 390BHP (2018-) 2018-)SLK (R172) SLK55 AMG (5.5 421BHP (2012-2016) 2012-2016)
