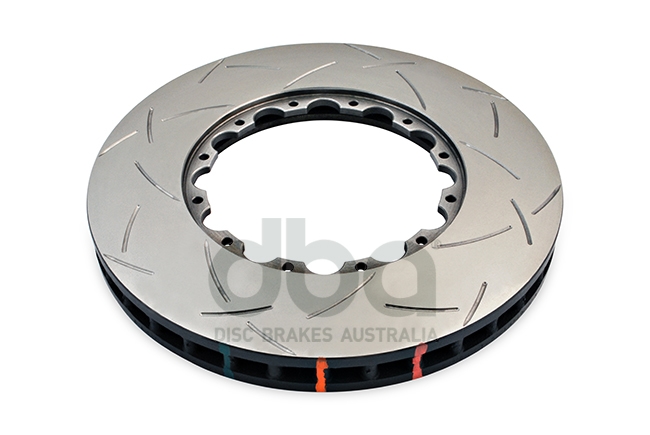

5000 series - T3 Slotted - Rotor Only (Suitable for DBA52218BLKS)
€237.46
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA52218.1S
DIAMETER_MM320
THICKNESS_MM32
DISC_VENTKangaroo Paw
STAGEStage 5
AIR_GAP_MM14
Fitment_Data
VEHICLE COMPATIBILITY
MITSUBISHI
Lancer Evo 5 (2.0 Turbo GSR (1997-1999) 1997-1999)Lancer Evo 6 (2.0 Turbo (1998-2001) 1998-2001)Lancer Evo 7 (2.0 Turbo (2000-2003) 2000-2003)Lancer Evo 8 (2.0 Turbo (2002-2005) 2002-2005)Lancer Evo 9 (2.0 Turbo (2005-2008) 2005-2008)
