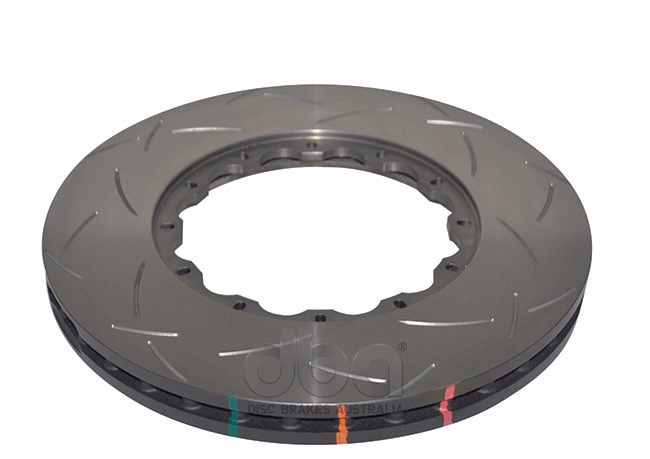

5000 series - T3 Slotted - Rotor Only (Suitable for DBA52314BLKS)
€277.41
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA52314.1S
DIAMETER_MM355
THICKNESS_MM32
DISC_VENTKangaroo Paw
STAGEStage 5
AIR_GAP_MM11,2
Fitment_Data
VEHICLE COMPATIBILITY
INFINITI
FX30D (3.0 TD (2010-2013) 2010-2013)FX37 (3.7 (2008-2013) 2008-2013)FX50 (5.0 (2008-2013) 2008-2013)G37 (3.7 (2008-2014) 2008-2014)M30D (3.0 TD (2010-2014) 2010-2014)M35h (3.5 Hybrid (2011-2014) 2011-2014)M37 (3.7 (2010-2014) 2010-2014)Q50 (3.0 Twin Turbo 304BHP (2016-2020) 2016-2020)Q50 (3.0 Twin Turbo 405BHP (2016-2020) 2016-2020)Q50 Hybrid (3.5 Hybrid 360BHP (2013-2020) 2013-2020)Q50 Hybrid (3.5 Hybrid 360BHP AWD (2013-2020) 2013-2020)Q60 (3.7 S 320BHP (2013-2020) 2013-2020)Q60 Coupe (2.0 Turbo 211BHP (2016-2020) 2016-2020)Q60 Coupe (3.0 Twin Turbo 405BHP (2016-2020) 2016-2020)Q70 (2.2 TD 170BHP (2014-2020) 2014-2020)Q70 (3.0 TD 238BHP (2014-2020) 2014-2020)Q70 (3.7 320BHP (2014-2020) 2014-2020)QX70 (3.0 TD 238BHP (2013-2017) 2013-2017)
