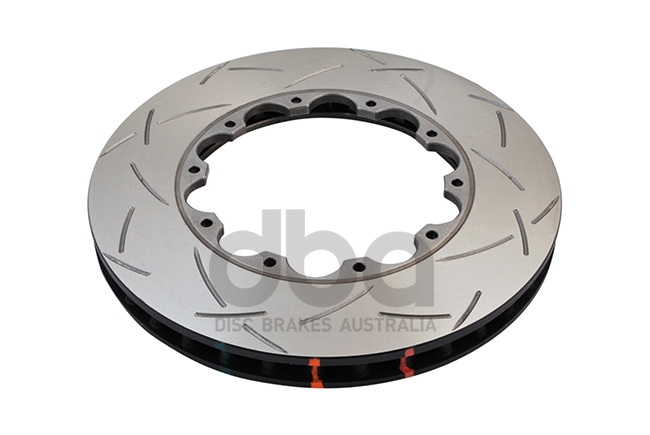

5000 series - T3 Slotted - Rotor Only (Suitable for DBA52355BLKS)
€204.84
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA52355.1S
DIAMETER_MM288
THICKNESS_MM26
DISC_VENTKangaroo Paw
STAGEStage 5
AIR_GAP_MM13,5
Fitment_Data
VEHICLE COMPATIBILITY
GRINNALL
Scorpion 4 (1.8 Turbo (2005-) 2005-)
LOTUS
2-Eleven (1.8 (2007-2011) 2007-2011)2-Eleven (1.8 Supercharged (2007-2011) 2007-2011)Elise (Series 2) (1.8 120BHP (2001-2005) 2001-2005)Elise (Series 2) (1.8 135BHP (2001-2011) 2001-2011)Elise (Series 2) (1.8 160BHP (2002-2011) 2002-2011)Elise (Series 2) (1.8 190BHP (2002-2011) 2002-2011)Elise (Series 2) (1.8 Supercharged 220BHP (2007-2011) 2007-2011)Elise (Series 3) (1.6 135BHP (2010-2018) 2010-2018)Elise (Series 3) (1.8 190BHP (2010-) 2010-)Elise (Series 3) (1.8 Supercharged 220BHP (2010-) 2010-)Elise (Series 3) (1.8 Supercharged 250BHP (2010-) 2010-)Elise (Series 3) (1.8 Supercharged 260BHP (2010-) 2010-)
