01 / 03
CATEGORY // 5000

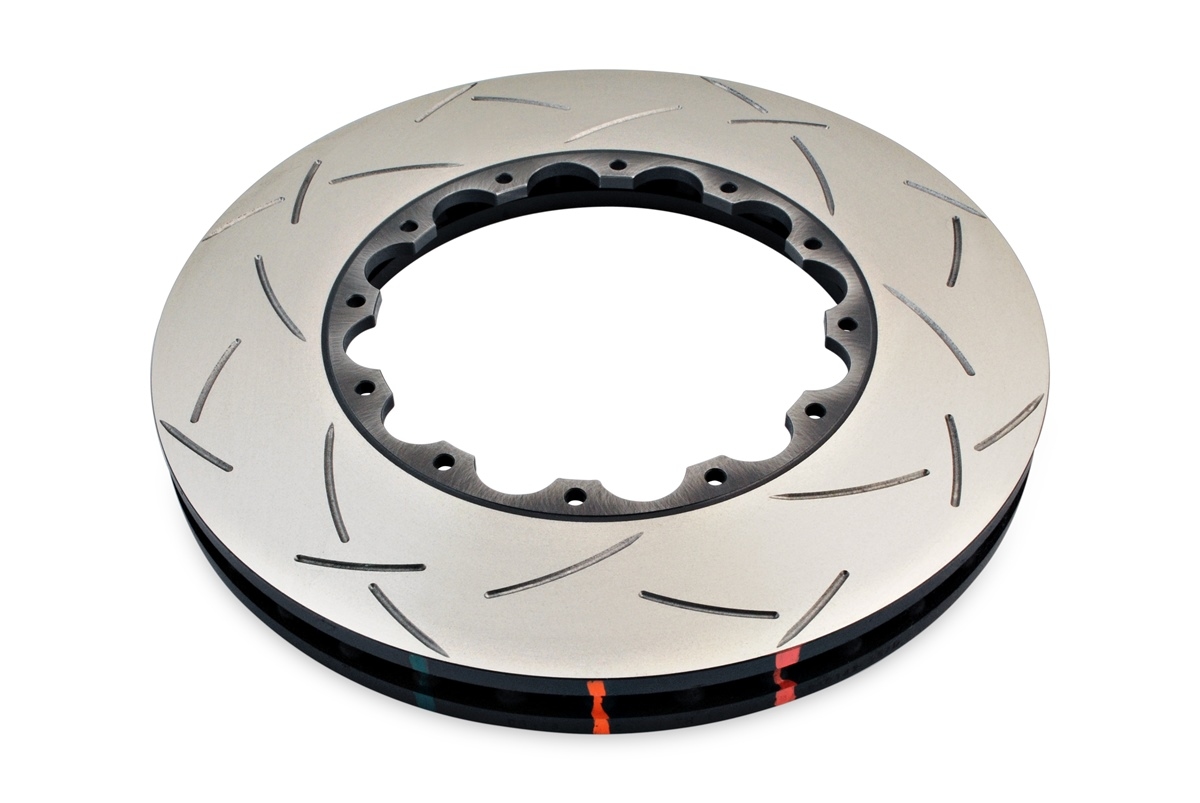

5000 series - T3 Slotted - Rotor Only (Suitable for DBA5654BLKS-10)
€237.46
Variant
MANUFACTURERDBA
DELIVERY_TIME
Product_Overview
DESCRIPTION
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Product_Specifications
TECHNICAL_SPECIFICATIONS
SKUDBA5654.1S
DIAMETER_MM326
THICKNESS_MM30
DISC_VENTKangaroo Paw
STAGEStage 5
AIR_GAP_MM12
Fitment_Data
VEHICLE COMPATIBILITY
SUBARU
BRZ (2.0 tS 200BHP (2013-) 2013-)Forester (2.5 Turbo STi 320BHP (2004-2008) 2004-2008)Impreza (2.0 Turbo WRX STi 100 pcd (2002-2005) 2002-2005)Impreza (2.0 Turbo WRX STi 114 pcd (2005-2006) 2005-2006)Impreza (2.5 Turbo WRX STi (2006-2007) 2006-2007)Impreza (2.5 Turbo WRX STi (2007-2012) 2007-2012)Impreza RB320 (2.5 Turbo (2006-2007) 2006-2007)WRX STi (2.5 Turbo 300BHP (2012-2017) 2012-2017)
TOYOTA
GT86 (2.0 TRD 200BHP (2018-) 2018-)
